KC-CXW External Rotary Broach Tool
Rotary Broach Tool
Rotary broach tool works by rotating the cutter to generate cutting force. The tool developed by the company is a special-shaped hole cutter with easy operation. It is most suitable for general machines, CNC automatic lathe, processing center and drilling machines. It can be used to make blind holes, through holes or regular/irregular polygons. Apart from standard hexagonal and square holes, special shapes such as star shape and spline can also be customized.
Samples

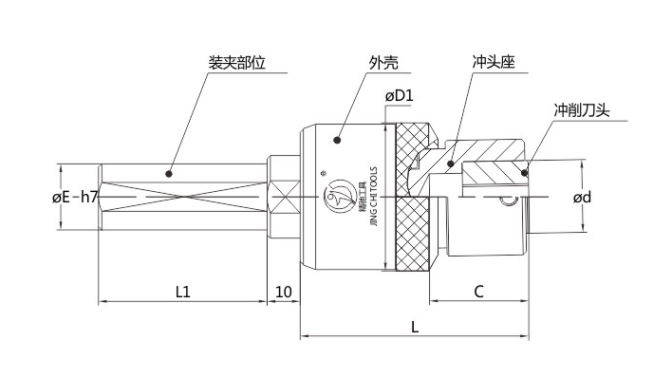

Product Data
| Model | Size | Broach head | ||||
| φD×L1 | D1 | d | L | C | ||
| KC-CX22A16 | Φ16×50 | 45 | 22 | 70 | 30 | KC-CT22-*** |
| KC-CX22A20 | Φ20×60 | |||||
| KC-CX22A25 | Φ25×60 | |||||
| KC-CX32A16 | Φ16×50 | 62 | 32 | 87 | 32 | KC-CT32-*** |
| KC-CX32A20 | Φ20×60 | |||||
| KC-CX32A25 | Φ25×60 | |||||

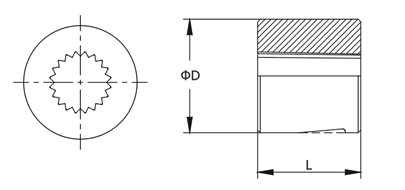

Adaptable Tool Parameters
| Model | Size | |||
| L | D | |||
| KC-CT22-*** | 20 | 22 | ||
| KC-CT32-*** | 32 | |||
Product Display
