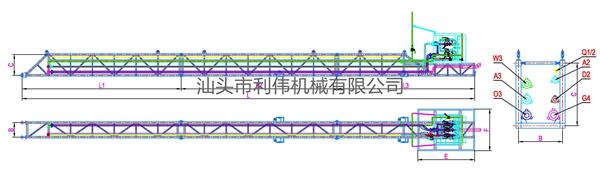

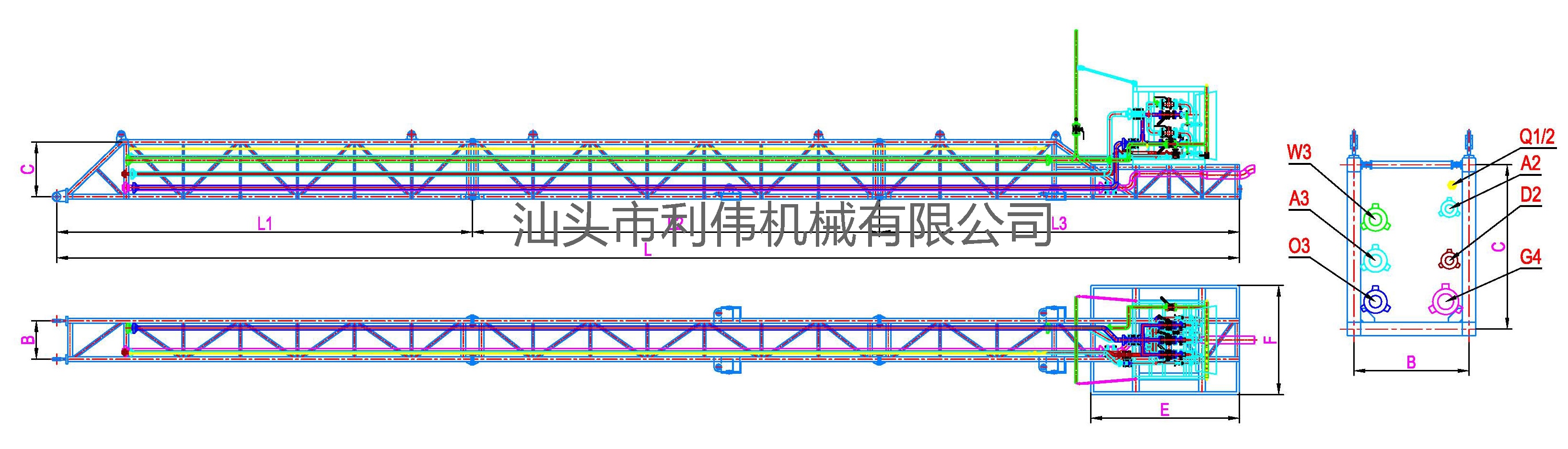

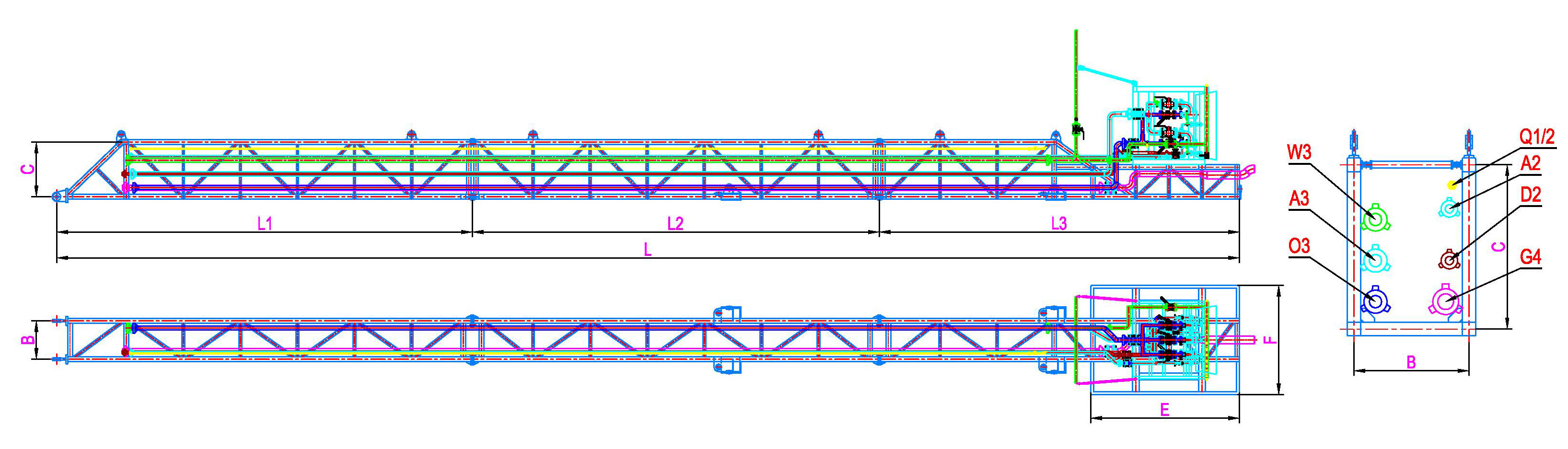

型號

MODEL

L

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

B

(mm)

C

(mm)

E

(mm)

F

(mm)

管路規格PIPE SPECIFICATIONS

代號
CODE

名稱NAME

規格
SPEC.

材料
MATERIAL

備注
REMARK

A2

空氣管

AIR PIPE

2" Sch40

20#

300PSI

A3

空氣管

AIR PIPE

3" Sch80

20#

300PSI

W3

海水管
SEA WATER PIPE

3" Sch80

20#

1500PSI

O3

原油管
CRUDE OIL PIPE

3" Sch160

35CrMo

1500PSI

G4

天然氣管
GAS PIPE

4" Sch120

35CrMo

1500PSI

D2

柴油管
DISEL PIPE

2" Sch80

20#

300PSI

Q1/2

液化氣管
LIQUEFIED GAS PIPE

1/2" Sch40

SUS316L

15PSI

備注：尺寸可根據客戶要求設計！

Remark: Dimensions can be designed according to customer requirements.
